Voltage Switch Module
Model:PCB-504B
The voltage switch module can be input 36-72VDC and output is 12V .this is the most common voltage for the electric locks and make the voltage conversion easier.
Keywords:
Share to:
Product Parameter Parameter Description

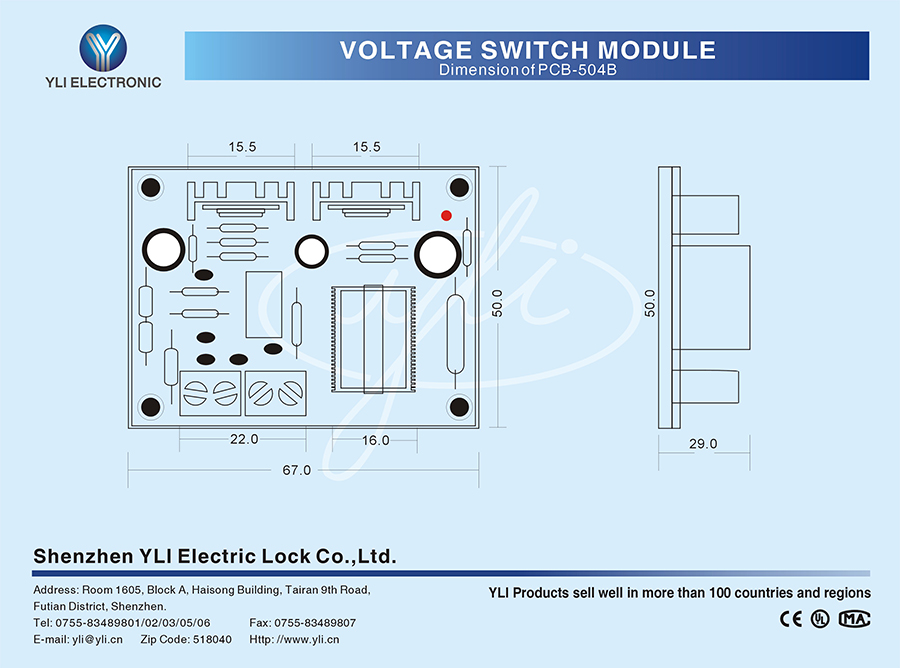

Dimensions  67Lx50Wx29H(mm)
Input  36-72VDC
Output  12VDC / 2A
Operating temp  -20~+70℃
Material  Premium Component
Weight  0.05kg
Certification CE-EMC
Regulated Switch Mode
36~72 V DC


Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle

Packing Quantity(PCS/CTN) 100
Packing Size(L*W*H)(cm) 54.3*13.5*19.3
Gross Weight(KG) 5.0
