Touch Button
首頁  ?  Home  ?  Products  ?  Exit Button  ?  Touch Button
There are 11 Similar products,Comparison

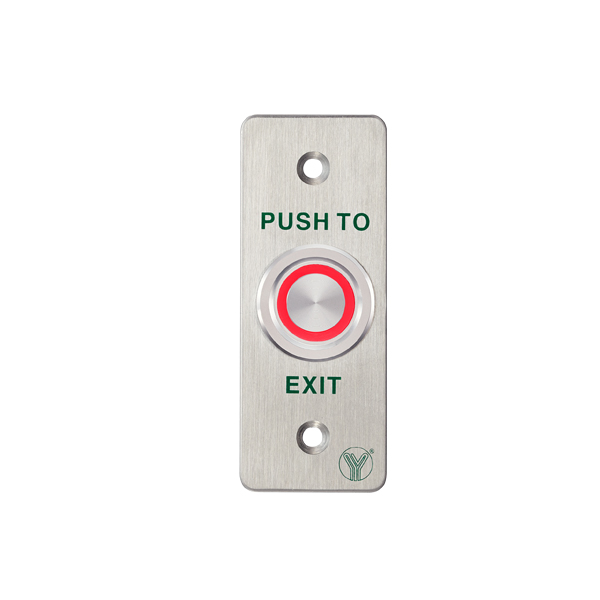

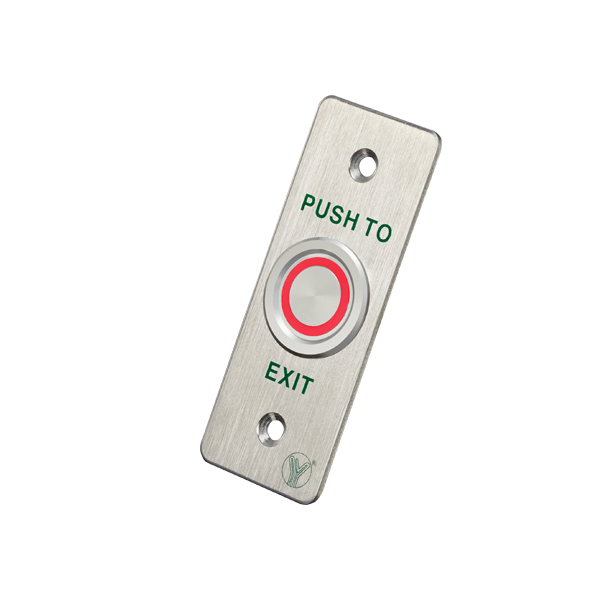

Touch Exit Button(Stainless)
Model:TSK-832A(LED)
TSK-832A(LED) ia a Touch Exit Button with LED, in size of 90Lx35Wx27.5H(mm), with Luxury , Fashion,Trend ,Technology design.
Keywords:
Share to:
Product Parameter Parameter Description
Dimensions 90Lx35Wx27.5H(mm)
Standard Structure
304 stainless steel panel with wiredrawing finish
Voltage DC12V~24V
Current ≤50mA
Output Contact NO/NC/COM
Mechanical life 500,000 tested
Operating Temp -20℃~50℃
Contact Rating 1A@30VDC
LED Status Red: Standby   Green : Operation
Operating Humidity 0%~99%
Wire color Red:+
Black: -
Yellow:NC
White: COM
Green:NO
Weight 0.2kg
Certification CE-EMC CE-LVD RoHS
Piezoelectric Design, No Mechanical Fault
LED Transformation ,Advanced Fashion& Technology, Smooth Surface with glass, Beauty Design with high fashion
Special Design for Top Grade Office , Best Choice for Sophisticated group
Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
